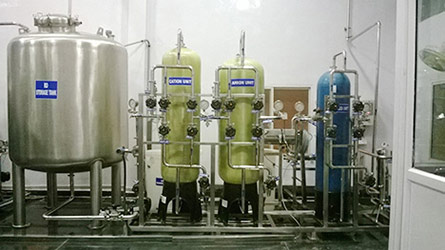

Demineralised Water Plant

Demineralised Water Plant

DESCRIPTION: The plant designing capacity 100 to 2,00,000 Ltr. Per Day depend on water property with water your requirement. The demineralization process utilizes acid regenerated action resin & caustic regenerated anion resin to remove minerals from water.

Price: On Request

Model: R-DWP

Tags :

De-mineralised Water Plant, DM Plant

Product Specifications
Varieties
Working
Application Areas
Quick Inquiry

The plant designing capacity 100 to 2,00,000 Ltr. Per Day depend on water property with water your requirement. The demineralization process utilizes acid regenerated action resin & caustic regenerated anion resin to remove minerals from water. We offer DM Plants of different sizes as per requirement of the customers. Trolley mounted automatic operation DM Plants are also available for small industries and laboratories. Demineralization or Deionization is the process of removing mineral salts from water by using the ion exchange process. With most natural water sources it is possible to use Demineralization and produce water of a higher quality than conventional distillation. Rattan Manufacture a Wide range of custom-built softening, Dematerializing plants for industrial process water applications, with inherent design to conserve water, and save costs. They are available in different sizes and materials, manually operated or fully Automatic, & ready to install & are available as standard models or custom built versions for specific needs.

Varieties of Demineralized Water Systems:

Constructed with FRP, MS, MSRL or SS vessels
Available in Automatic and manual mode
Integrated with Multiport and individual valve

Feed water is passed through two small polystyrene beds filled with ion exchange resins. The cations present in water get exchanged with hydrogen ions in first bed. And the anions are exchanged with hydroxyl ions, in the second bed.
The feed water is pumped into the Multi-media Filters and Activated Carbon Filters.
These units remove Cationic ions from the water
Then the water enters through the Strong Base Anions and Anions get removed from the water stream.
Mixed Bed units polish the water, greatly reducing the conductivity level.
The feed pumps provide regeneration water to the regeneration skids
Different regeneration skids provide the necessary amount of dilute chemical to the demineralization vessels.
Finally the demineralized water is then passed to the storage tank
