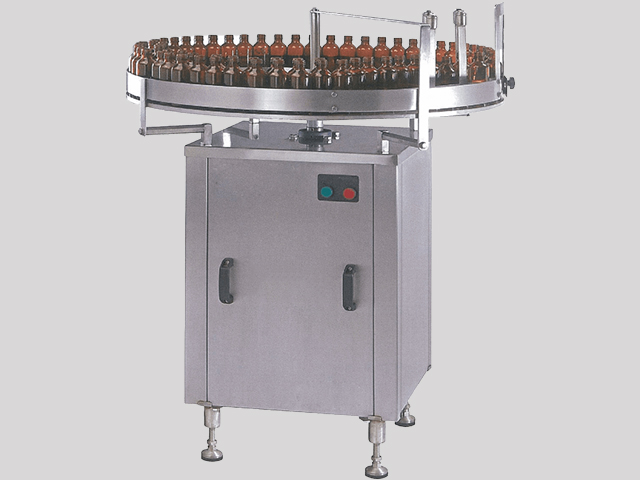

Stainless steel scrambler & un-scrambler, which is familiar as turn table. This is built on SS square frame, solid guide rail & reduction gear box for jerk less & noiseless performance. Turntable is useful to ensure total synchronization, u
Designed for stable and reliable operation.
Optimised for efficient production output.
Built using dependable industrial components.
Available as per project requirements.
Complete overview and product information.
Stainless steel scrambler & un-scrambler, which is familiar as turn table. This is built on SS square frame, solid guide rail & reduction gear box for jerk less & noiseless performance. Turntable is useful to ensure total synchronization, uniform flow of container and to take a turn at 90 degree to suit different machine and purpose in automatic liquid line.
Main performance and construction benefits.
1. Accuracy ± 1 % in single doze. 2. Construction Stainless Steel 304 quality. 3. AC Frequency Drive. 4. Special self-aligning bearings ensure smooth and trouble free operation. 5. Heavy-duty conveyor system. 6. Suitable for different type of container. 7. S.S. elegantly matt finished body. 8. Reduction gears ensure jerk free and noiseless operation. 8. Matt Finished body.
Detailed technical data and machine configuration.
| Modal No. | RTT-30 | RTT-36 | RTT-42 |
| Direction | Clockwise / Anti clock wise as per requirement | - | - |
| Electric Motor | 0.5 HP/415 V/50 Hz | - | - |
| Height Of Disk | 860MM to 910MM | - | - |
| Machine Dimension | 780x780x1160 | 925x925x1160 | 1076x1076x1160 |
| Weight | 80 | 100 | 130 |
| Electric Load | 1KW | - | - |
