Offered by us is a high quality range of Web Sealers to the esteemed clients, as per their specific requirements. These machines are fabricated in compliance with the international quality standards. In addition to this, with the aid of our
Designed for stable and reliable operation.
Optimised for efficient production output.
Built using dependable industrial components.
Available as per project requirements.
Complete overview and product information.

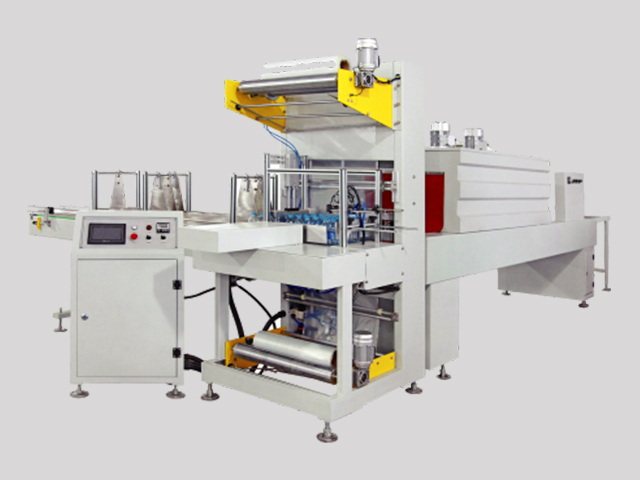

Offered by us is a high quality range of Web Sealers to the esteemed clients, as per their specific requirements. These machines are fabricated in compliance with the international quality standards. In addition to this, with the aid of our wide distribution network, we make sure to deliver the ordered products the clients’ premises within the committed time frame. Web Sealer Machine can be pushed manually or pneumatically. After the process of sealing & cutting, the products enter the shrink tunnel automatically.
Recommended industrial usage areas.
1. Shrink packing for many industries, such as Distillery, Brewery, Food, Beverages, Printing, Pharmacy, etc. 2. It’s suitable for all kinds of shrink films such as PVC, POF, PP , PE etc.
Main performance and construction benefits.
1. Two roll of shrink film operation. 2. Automatic feeding of product through conveyor system. 3. P.L.C. Controlled System. 4. With or without automatic collating. 5. Heavy-duty conveyor system. 6. High-speed blower system with continuous rating. 7. High quality heating element. 8. Machine can be attached with any other packing machine or operation to give online application. 8. The machine is suitable for shrink packing both single object and combined objects.
Detailed technical data and machine configuration.
| Product | Web Sealer | Shrink Tunnel |
|---|---|---|
| Voltage (V/Hz) | 300/50 3PH | 380/50 3PH |
| Power Consumption ( kw) | 1.5 | 2.2 |
| Packing Speed (pcs/min) | 0-12 | 0-10 |
| Max Packing Dimension (mm) | 500x290x380 (LxWxH) | 1450x550x400 |
| Max sealing length (mm) | 650 | - |
| Height of conveyor (mm) | 800 ± 50 (Adjustable) | - |
| Working air pressure (Kgf/m2) | 6/td> | - |
| Dimension (LxWxH) (mm) | 1370X920X1800 (LxWxH) | 2550x850x1500 |
| Conveyor Loading(kg) | - | 40 |
| Heating Time ( Minutes) | - | 10 |
| Cooling Time ( Minutes) | - | 15 |
| Weight (kg) | 700 | 300 |
Send us your requirements for product details, pricing, technical specifications and project support.
